Bolly Composite Undercarriages are built from a high temperature epoxy (they will not wilt on a hot day), and combinations of (primarily) Carbon Fibre plus where appropriate some Glass & Aramid fibres. The construction is predominately via rovings running lengthwise with cloth reinforcement in the bolt areas. Such a construction method isn't the prettiest, but it is the most effective.
Thin and airfoiled for low drag, although several smaller UC are flat plate style with rounded edges.
Note : It is quite OK to cut our F3A gear in half and space apart to fit different fuselage widths.
New size soon, F3A Winged is in pre production. It is the latest in "canard" style UC to aid low speed stability. It's introduction has been delayed due to the original moulds being damaged.

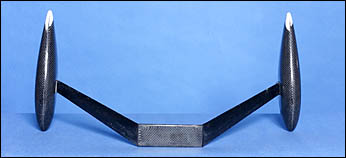

The above picture is of the F3A Standard gear plus an older style (with white filler) F3A Standard Wheel Pants. Note that we describe this gear as "straight - back", i.e. the legs are straight and sweep backwards.
In the below table all dimensions are in mm & average weights in grams.
A=fuselage width, B=track, C=height (axle to fuselage), D=width @ top, E=width @ foot, F=sweepback.
| Product |
A |
B |
C |
D |
E |
F |
Leg Shape |
Avg Weight |
| 40% Extra (soon) |
240 |
640 |
310 |
60 |
25 |
na |
curve down |
585 |
| F3A-2000 |
166 |
456 |
185 |
39 |
22 |
na |
curve down |
145 |
| F3A-Winged |
|
|
|
|
|
|
due January 09 |
130 |
| F3A-Electric |
120 |
470 |
195 |
38 |
22 |
98 back |
curve - back |
126 |
| F3A-Long |
112 |
485 |
215 |
38 |
22 |
62 back |
straight - back |
128 |
| F3A-Wide |
110 |
440 |
180 |
42 |
22 |
60 back |
straight - back |
125 |
| F3A-Curved |
112 |
465 |
168 |
38 |
22 |
90 back |
curve - back |
121 |
| F3A-Large |
102 |
394 |
170 |
42 |
22 |
80 back |
straight - back |
110 |
| F3A-Std |
102 |
401 |
150 |
36 |
22 |
78 back |
straight - back |
95 |
| F2B-60 |
60 |
295 |
85 |
35 |
22 |
na |
flat plate style |
36 |
| F2B-40 |
57 |
268 |
72 |
31 |
22 |
na |
flat plate style |
30 |
| F2B (cl stunt) |
60 |
305 |
120 |
25 |
11 |
38 back |
straight - back |
35 |
| FAI (pylon) carbon |
76 |
250 |
78 |
30 |
17 |
na |
flat plate style |
50 |
| QM (pylon) carbon |
36 |
238 |
45 |
24 |
41 |
na |
flat plate style |
50 |
| Undercarriage Prices |
 |
Overseas / Export Customers: Please note the below prices are for local customers and include 10% GST. Export sales are gst exempt, we will deduct 1/11th from your price.
| Product |
Product Description |
Price A$ (inc GST)
|
|
Extra (40%) Undercarriage
|
limited numbers in stock - for 40% scale.
|
p.o.a |
|
F3A 2000 Undercarriage
|
Curved 'Sokhoi / Extra' looking design. Used on models up to 7kg. Carbon Fibre
|
$72.00 |
|
F3A "Winged" Undercarriage
|
New "Winged" landing gear shape for F3A models. Helps hold a heading a low speed. Individual legs, painted white. Carbon Fibre
|
soon |
|
F3A Electric Undercarriage
|
Stylish new curved shape - long legs to suit electric F3A models. Carbon Fibre
|
$66.00 |
|
F3A Long Undercarriage
|
Sweepback design with longest (straight) legs in our F3A range, perhaps more suitable for electric than the "electric". Carbon Fibre
|
$69.00 |
|
F3A Wide Undercarriage
|
Swept back design. Designed to suit 'medium bodied' 2 x 2 F3A models. Carbon Fibre
|
$64.00 |
|
F3A Curved Undercarriage
|
Very popular curved (in sweptback) shape to suit most F3A designs. Carbon Fibre
|
$65.00 |
|
F3A Large Undercarriage
|
A larger version of our original (std) swept back design (but smaller than many later designs). Excellent ground handling. CF
|
$61.00 |
|
F3A Std Undercarriage
|
Our original and very popular "Standard" swept back design. Great looks and excellent ground handling. CF
|
$57.00 |
|
F2B-60 Undercarriage
|
New gear for .60 CL Stunt models many more applications. Flat sheet style. CF
|
$32.00 |
|
F2B-40 Undercarriage
|
New gear for .40 CL stunt etc. Flat plate style. CF
|
$31.00 |
|
F2B Undercarriage
|
Swept back design. Great looks and excellent ground handling
|
$33.00 |
|
FAI (pylon) undercarriage
|
Handy for many small models. Flat plate style
|
$27.00 |
|
QM (.21 pylon) undercarriage
|
For very small low models. Flat plate style
|
$23.00 |
|
| Wheel Pants (Spats) |
|
Unique to Bolly, (although now often copied) is the use of an indentation / location area on the inside of each wheel pant designed to lock into a matching shape at the foot of each undercarriage leg. (57mm WP is plain and will fit any UC).
Bolly GLASS wheel pants are constructed of lightweight glass fibre cloth / epoxy with carbon or aramid fibre reinforcement around the undercarriage / axle mounting area.
Bolly CARBON wheel pants are constructed of carbon fibre cloth / epoxy with kevlar reinforcement at the axle mounting area. The CF wheel pants are not lighter than glass, but much stronger.
We use the DuBro "Spring Steel Axle Shafts" (mainly cat. 248, 2" x 5/32 dia) to attach the undercarriage / wheel and wheel pant together. Our choice of wheels is the Dave Brown - treaded Lite-Flite wheels (our shop sells the 2.25", 2.75" and 3.5" versions). It is important to not use a wheel which is too flexible or wide as they can damage the wheel pants in a heavy landing.
News : All Bolly Wheel Pants are now available in a painted WHITE polyurethane finish with the join line filled. Either leave them white or overspray with any other type of paint to your favourite colour scheme.

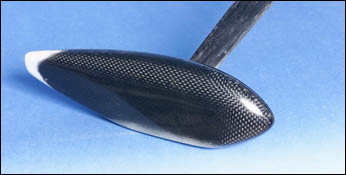

All carbon Wheel Pants (spats) are NOW solid black / CF cloth colour / pattern. Please note the photo below is inaccurate, we no longer use white filler as a part of the construction. We will update the pictures soon.
|
Product
|
Length mm |
Width mm |
Height mm |
Footing Size (H x W) mm
|
Wheel Size mm |
Ave Weight (gm) (pair) |
|
1/4 Scale Laser (C/F)
|
320 |
60 |
85 |
30 x 30 |
90mm / 3.5" |
100 (n/a) |
|
F3A Std (C/F)
|
215 |
37 |
62 |
30 x 22 |
70mm / 2.75" |
46 (54) |
|
F3A Small (C/F)
|
197 |
30 |
50 |
30 x 22 |
57mm / 2.25" |
32 (38) |
|
F3A Std (glass)
|
215 |
37 |
62 |
30 x 22 |
70mm / 2.75" |
44 (52) |
|
F3A Small (glass)
|
197 |
30 |
50 |
30 x 22 |
57mm / 2.25" |
31 (37) |
|
57mm Glass only
|
197 |
30 |
50 |
na |
57mm / 2.25" |
30 (36) |
All White painted Wheel Pants are about 20% heavier than the natural version, as per (xx) above
| Wheel Pant Prices |
|
Overseas / Export Customers: Please note the below prices are for local customers and include 10% GST. Export sales are gst exempt, we will deduct 1/11th from your price
| Product |
Product Description |
Price A$ (inc GST) |
|
1/4 scale Laser W/P - Carbon
|
Shape based on Laser, suits most models. Fits 90mm / 3.5" wheel. Carbon Fibre
|
$80.00 |
|
F3A Standard W/P - C/F
|
Standard design, shape based on Extra 300S, for 70mm / 2.75" wheels. Designed to fit all Bolly F3A UC. Carbon Fibre
|
$59.00 |
|
F3A Small W/P - C/F
|
Our latest and very attractive design for 57mm / 2.25" wheels. Perhaps now our most popular. Designed to fit all Bolly F3A UC. Carbon Fibre
|
$54.00 |
|
F3A Std W/P - Glass
|
Standard design for 70mm / 2.75" wheels. Designed to fit Bolly F3A UC. Glass Fibre
|
$39.00 |
|
F3A Small W/P - Glass
|
Our latest and very attractive design for 57mm / 2.25" wheels. Perhaps now our most popular. Designed to fit all Bolly F3A UC. GLASS Fibre
|
$34.00 |
|
57mm W/P - Glass
|
Lightweight WP for 57mm / 2.25" wheels in Glass Fibre - will fit any UC
|
$36.00 |
|
1/4 scale Laser WP - Carbon WHITE
|
As above - painted in gloss white polyurethane
|
$89.00 |
|
F3A Std WP C/F WHITE
|
As above - painted in gloss white polyurethane
|
$65.00 |
|
F3A Small WP CF WHITE
|
As above - painted in gloss white polyurethane
|
$60.00 |
| F3A Std WP Glass WHITE |
As above - painted in gloss white polyurethane
|
$45.00 |
|
F3A Small WP Glass WHITE
|
As above - painted in gloss white polyurethane
|
$40.00 |
|
57mm WP Glass WHITE
|
As above painted in gloss white polyurethane
|
$42.00 |
Updated pictures due soon.
See http://www.bolly.com.au/grp/ for wheels, axles, prop balancers, reamers, spinners etc.
